Hardware Lab

Boards, motors and sensors: an Altium PCB you can orbit in 3D, a three-phase motor wound from scratch, and a water-contact sensor built for a UAS.

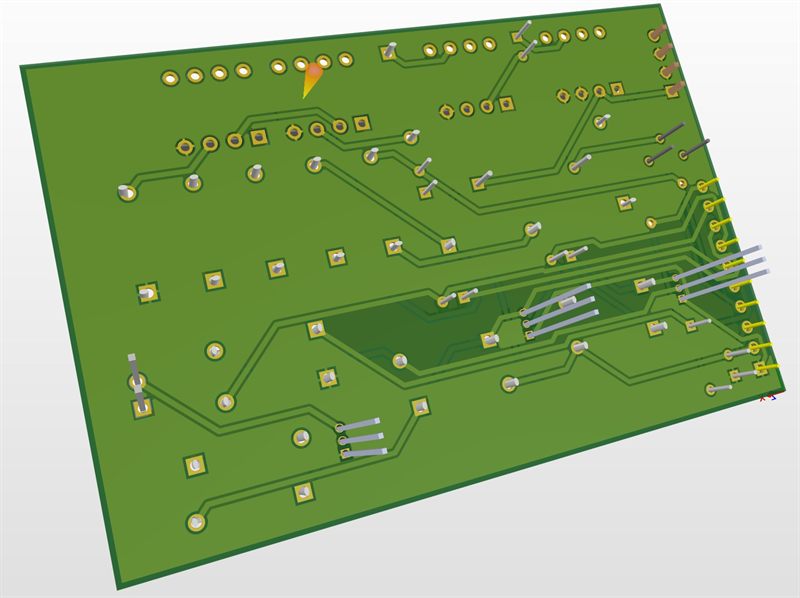

PCB Inspection · Assembly View

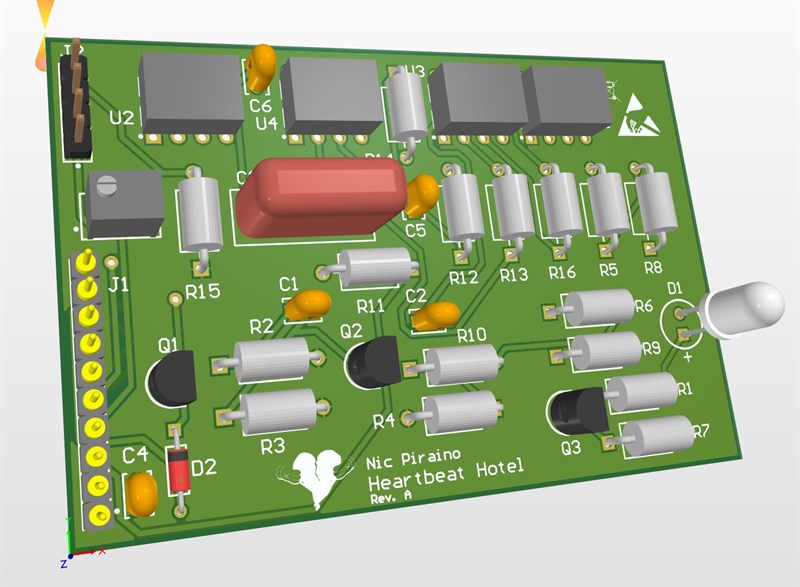

Heart-rate PCB · Altium Designer 24 · Drag to orbit · Scroll to zoom

Mode

Camera

BPM

LED dome, pulses with BPM
Board body, semi-transparent in X-Ray mode
Click a reference image to sync 3D orientation

BLDC Motor · ENGR 320

Budget $94.92 / $100 CADFull case study
Topology
9S / 8P Inrunner
Winding
~200 T/pole · 24 AWG
Rₚₕ
2.02 Ω(Calculated)
Control
Arduino + Hobbywing 30A

CAD cross-section

9-slot stator · 8-pole rotor · Wye winding geometry

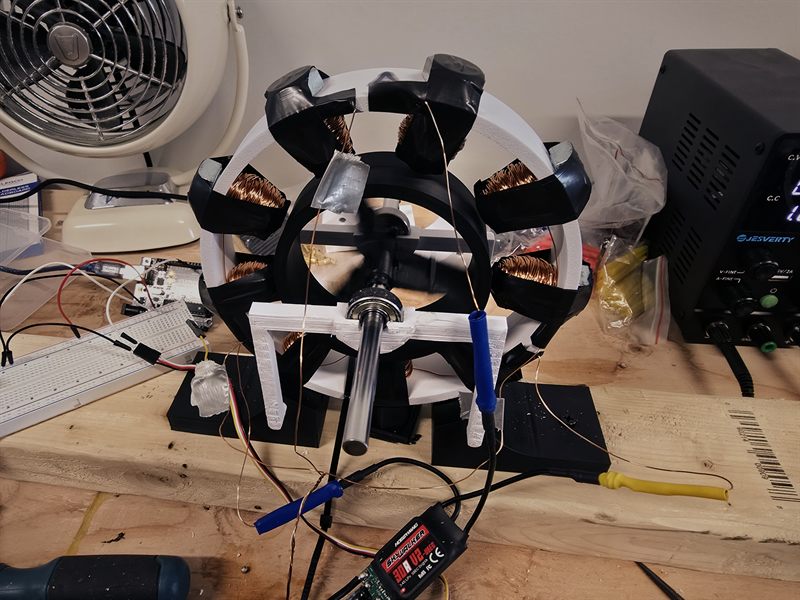

Physical prototype

Physical prototype

PETG HF base and rotor · Steel-bolt stator teeth · 24 AWG windings

Motor demo

Spin-up on the AaABbBCcC winding · Hobbywing Skywalker 30A V2 ESC

Magnetic reluctance

μᵣ: 1 → ~200

Challenge

With printed PLA teeth (relative permeability ≈ 1, magnetically no different from air) almost the whole flux path was high-reluctance, so the flux, and with it the torque, was far lower than needed.

Solution

Replaced the PLA teeth with steel bolts, which give the flux a low-reluctance path. The same rebuild raised the winding from 50 to about 200 turns per pole, so the two effects were never separated, and no torque was measured before or after.

Thermal limit

Tg: ≈55°C → 66°C

Challenge

Resistive (I²R) heating in the windings meant continuous runs had to be kept short, so the PLA+ stator (Tg ≈ 55°C) would not soften and warp into the rotor. No temperature was measured.

Solution

Replaced the printed wire retainers with steel bolts and reprinted the base, rotor and magnet holders in PETG HF (Tg 66°C on the manufacturer’s datasheet), for more thermal margin than PLA+. Operating temperatures were not recorded.

Winding sequence

ABCABCABC → AaABbBCcC

Challenge

With 9 teeth and 8 rotor poles, neighbouring teeth sit 160° apart electrically, so the original ABCABCABC winding put each phase’s three coils 120° apart and their torque contributions cancelled. That matches the oscillation the team saw.

Solution

Rewound as AaABbBCcC: each phase on three neighbouring teeth, with the middle coil wound the opposite way (lower case), so the three coils add instead of cancelling. After the rewind it spins up cleanly.

2nd Year UAS Aerospace Team: Water Contact Sensor

UBCO UAS Aerospace Team · 2nd Year

Detects when a tube lowered from a UAV touches the water inside a target barrel.

Application
UAV tube-water contact detection in target barrel
Tool
KiCad 7.0
Focus

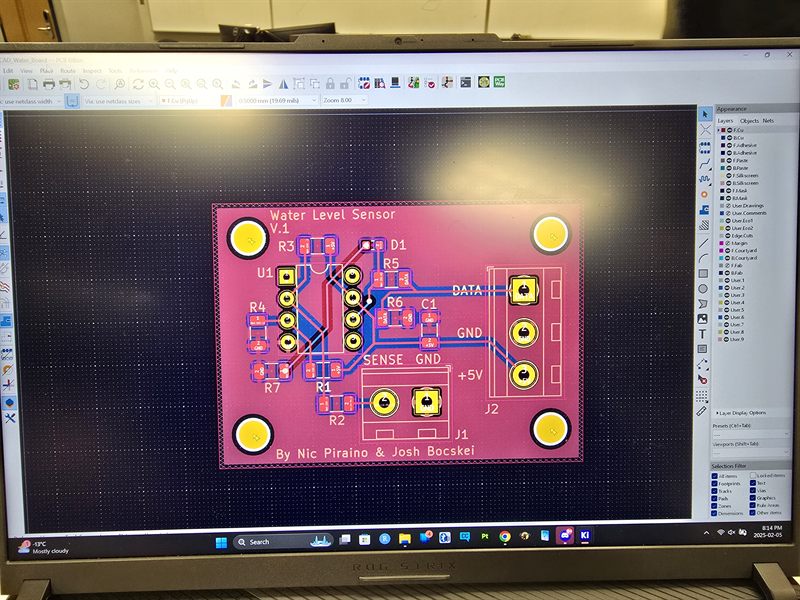

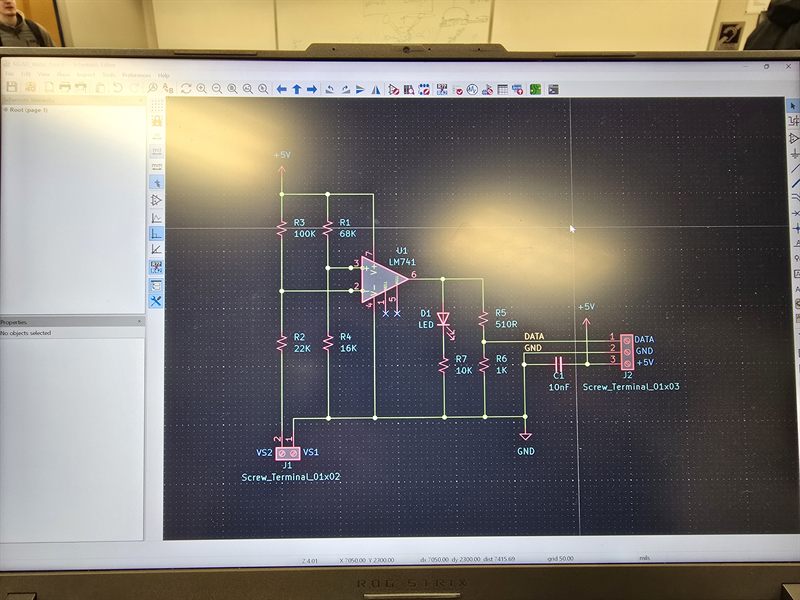

Schematic capture + PCB layout
Team
UBCO UAS Aerospace Team
Year
2nd Year Engineering
