Musical Fidelity A3.2 CD Player

The fault

The player skipped. Not one damaged disc and not one spot on one disc: several known-good pressed CDs would lose tracking at various points, and the elapsed-time display would jump forward or backward when it happened.

That last detail is the one that matters. A player muting its analogue output leaves the counter running normally. A counter that jumps means the transport lost its place in the data stream and reacquired somewhere else, so whatever was wrong was upstream of the audio, in tracking rather than in the analogue stage.

It was worse from cold and usually improved once the player had been running a while. It also happened on headphones, with the speakers and subwoofer out of the picture entirely, which rules out acoustic feedback into the mechanism -- the first thing worth eliminating on a turntable-adjacent complaint, and the easiest to assume wrongly.

What it could have been

Everything else about the player worked: it recognised discs, the digital section and analogue output behaved, and nothing was intermittent except tracking. That left a short list.

The cold-start behaviour pointed at the mechanical suspects, so those got dealt with first. They were also the ones I could address without touching anything that affects the life of the laser.

Inside the A3.2

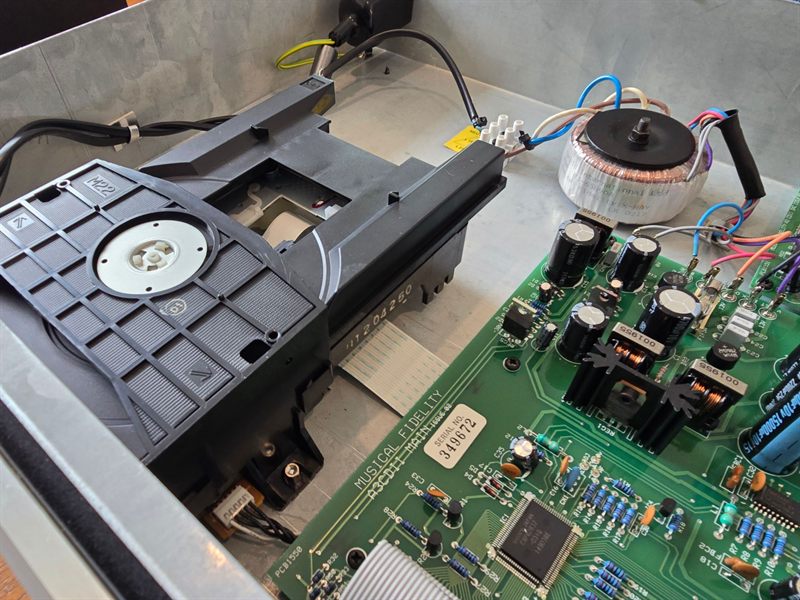

The chassis screws are tamper-resistant Torx. Underneath, the layout is simple enough to read at a glance: the Sony loading mechanism takes the left half, a toroidal transformer sits at the rear centre, and Musical Fidelity’s own digital, servo and supply circuitry occupies the right. The analogue output stage is on its own board by the output connectors at the back.

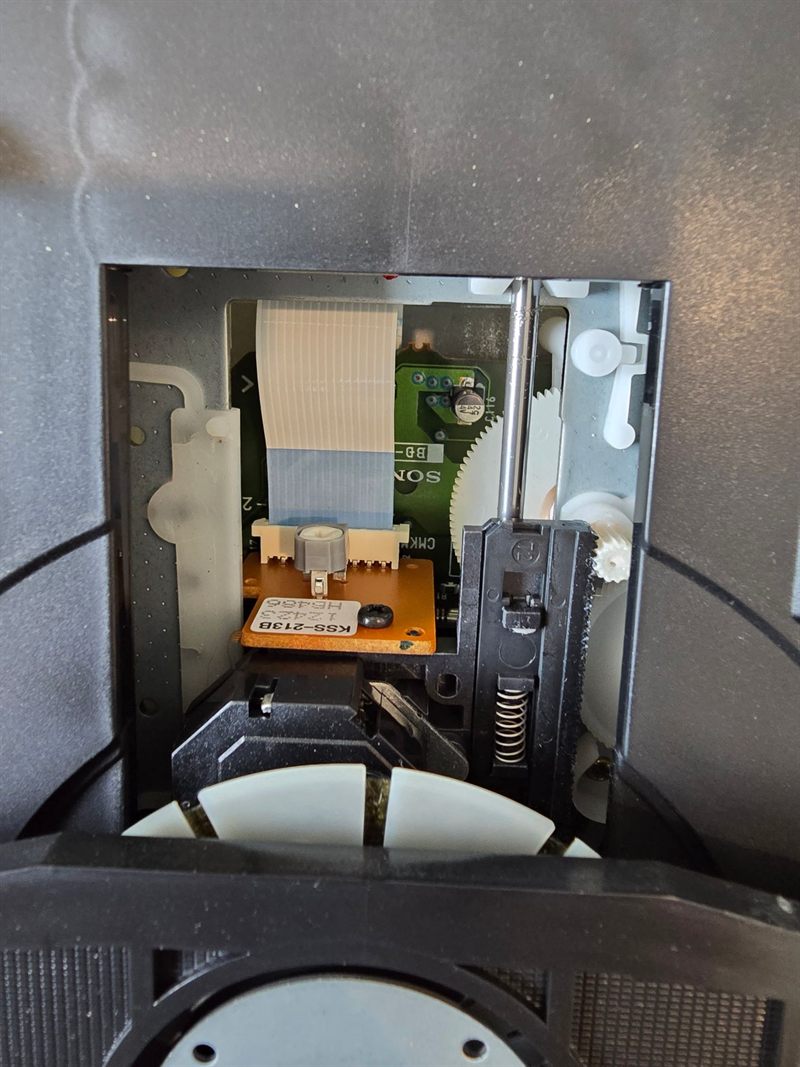

Musical Fidelity’s documentation lists the transport as a Sony CDM14BL-5BD25 with a KSS213BA/F-NP pickup. The pickup actually fitted to my unit is marked KSS-213B on its flex PCB, which puts it in the same Sony family but is not the string the manual uses. Worth keeping the distinction rather than flattening it, because it is the difference between what the manual says and what is physically in the machine, and the part I eventually buy has to match the latter.

Cleaning and mechanical service

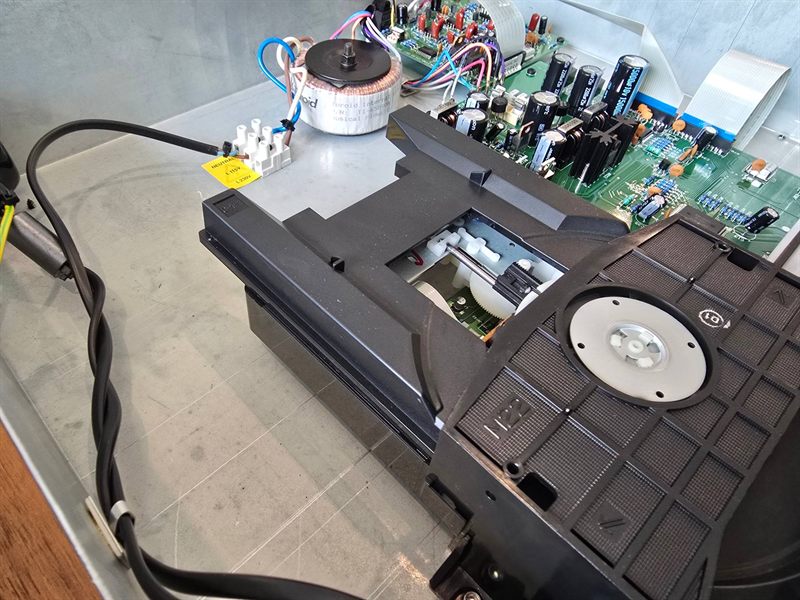

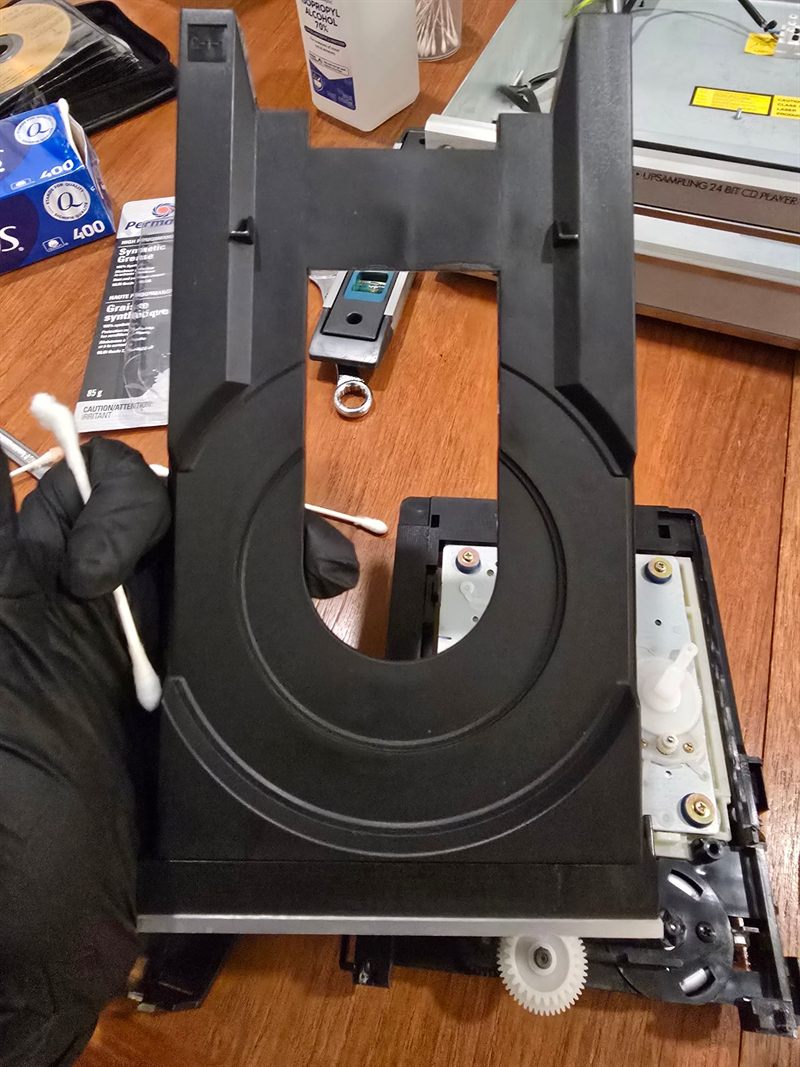

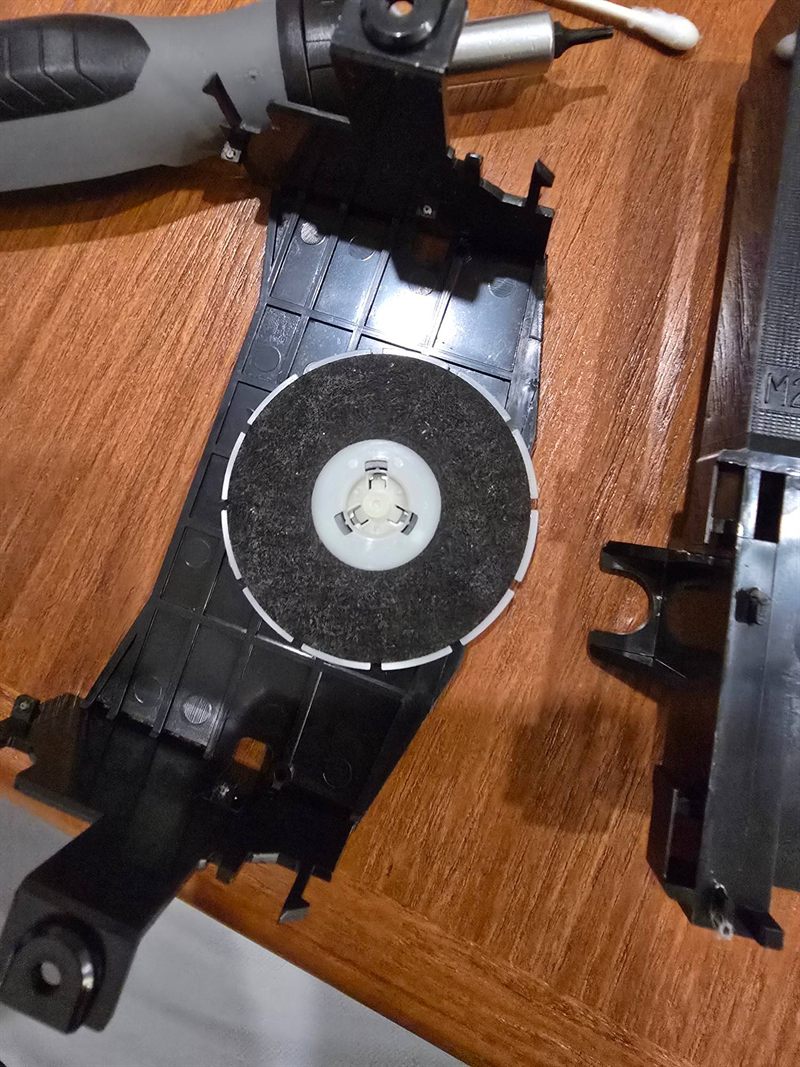

The mechanism came apart progressively: tray and loading components first, then far enough to reach the optical assembly and the sled.

The objective lens was cleaned with isopropyl alcohol on a clean swab and almost no pressure. The lens is suspended on the focus actuator, so it moves under any force worth calling force -- the cleaning has to be gentler than feels productive.

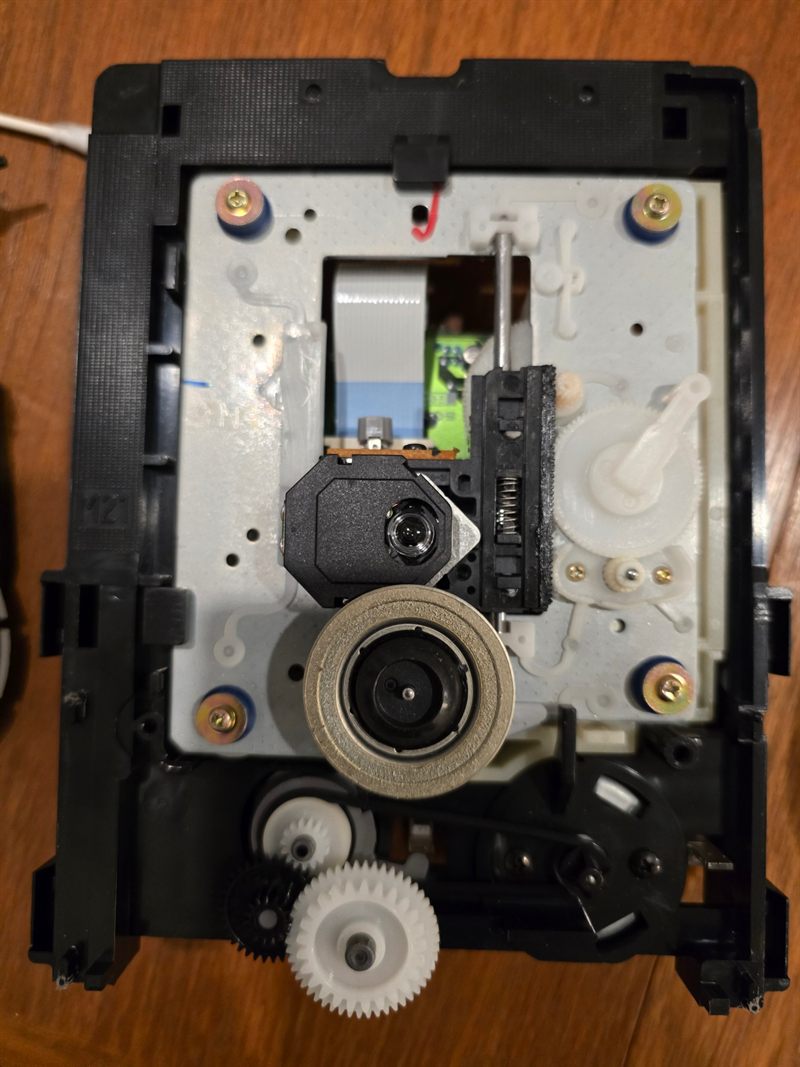

The sled rides a polished steel guide shaft driven through a plastic gear train and a toothed rack. Old lubricant and contamination came off the accessible surfaces, and the gears and rack were checked for hardened grease and damaged teeth before anything went back on.

Fresh lubricant was Permatex 31832 multi-purpose synthetic PTFE grease, which is safe against both the plastics and the steel here, applied as a thin film on the guide shaft and the gear contact faces only. Nothing went on the lens, the spindle hub or any surface that touches a disc. Over-greasing a CD mechanism is its own fault mode later on.

Why the mechanical service was not the answer

Reassembled and tested, the transport was better and still skipped. That is a useful result even though it is a negative one: cleaning and relubrication address tracking resistance, and if fixing the resistance does not fix the mistracking, the servo is probably not losing the fight against friction.

What was left was the optical side -- how much signal the pickup returns for the servo to work with.

The trimmer test, and what it actually proved

A very small adjustment of the pickup’s trimmer potentiometer produced a disproportionately large improvement. Discs that had been unreliable started playing through; the remaining skips moved to visibly poor or damaged tracks.

That response is consistent with an optical system running short of read margin: nudging the operating point gave the focus and tracking servos enough signal to hold lock. It does not prove that on its own, and this is the point where the page has to be honest about its own evidence. The correct way to evaluate a KSS-213 pickup is to measure the RF eye pattern and the laser operating current against the service specification. I did not do that. What I have is a behavioural response to a control, which is an observation, not a measurement, and it can only make the pickup the leading suspect rather than the confirmed cause.

I also stopped once it worked instead of continuing until it worked perfectly. Turning that trimmer further increases laser diode current, which buys present-day reliability against remaining pickup life. That is a trade worth making deliberately and in small amounts, and it is not routine maintenance -- it is a diagnostic with a cost.

Where it stands

Before the service, several discs would repeatedly lose tracking and the counter would jump around while the player hunted for its place. After cleaning, relubrication and the trimmer adjustment, many discs play start to finish normally, and the skipping that is left shows up mostly on marginal or damaged tracks.

So the player is usable, and I would not call it repaired. The original pickup is still in it. The adjustment is a life-extension measure on a component that appears to be ageing, and it should be read as buying time rather than closing the fault.

Finding a real replacement

I am looking for a genuine Sony KSS-213B or KSS213BA-family pickup, ideally new old stock or a verified low-use original Sony mechanism. Sony documentation lists the KSS-213B as service part 8-848-379-31.

One candidate is an AudioProz complete KSS-213B mechanism with frame and springs, inventory #71242, described as low-use and graded 9 out of 10. Before buying it, compatibility has to be confirmed against what is in the A3.2: a shared pickup part does not guarantee that the loading frame, spindle assembly and mounting geometry are the same, and a mechanism that does not drop into this chassis is not a repair.

The order of preference is genuine NOS Sony first, then a verified low-use original Sony pickup or mechanism, then a reputable aftermarket KSS-213B -- rather than starting with an unknown generic clone, which is how a working player becomes a project. I am also not treating a KSS-213C or D as an automatic upgrade. The player was engineered around the B-family pickup and Sony treats the variants as distinct service parts.
